Wrangle Node Examples

Deborah R. Fowler



Wrangle Node Example - Impossible Object made possible in Houdini

Posted on June 17  2018
Updated with better render July 9  2018


In this example, a ramp parameter is created in the point wrangle node to control pscale which is used in polywire

This example was inspired by the impossible object video on you tube https://www.youtube.com/watch?v=pQxiHR3JOZ4

MISSING GIF
Lighting can quickly reveal the illusion
MISSING GIF

The object was created using tubes and boxes, a clip node, and a wrangle node to control the size of the tube as a way to "whittle" the stick down in Houdini

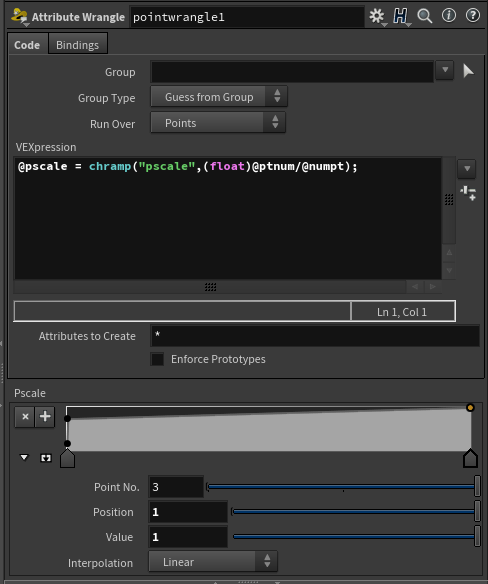

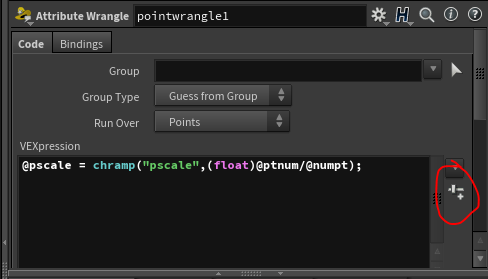

By clicking on the "slider" icon, it creates the parameter

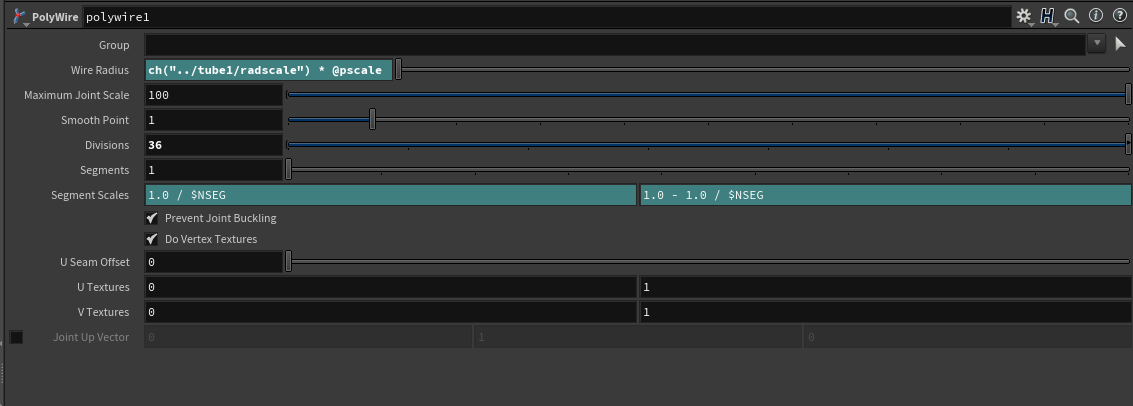

Which can then be used in the polywire node



Nodes used: tube, box, transform, polywire, pointwrangle, clip, line
