Deborah R. Fowler
Dot Product - Any polygon
Tags: point wrangle, attribute
promote, dot product, acos, normalize, length
For further generalizations click here
"Dot Product is the product of the magnitudes of the two vectors and the cosine of the angle between them. The name "dot product" is derived from the centered dot that is often used to designate this operation. See wiki entry.
Also on youtube at https://www.youtube.com/watch?v=UqpmteoWF6s
MECHANICS
This project was inspired by two things:
... the method for the circle will not work since there is no tangent to an arbitrary polygon that we can guarantee to hit. Bbox and intersection analysis are out because we do not know where it intersects.
It started off with a simple geometric proof of concept and one line of pointwrangle code:
The key to the solution
is to calculate the dot product between the axis (z-axis in
this case) and each point of the polygon. Then take the acos
to find out the angle and convert it into degrees for use in
the hscript expression. I love math! The point that needs to
be used is the maximum angle. A really useful method for doing
this in Houdini is to use Attribute Promote and
promote the parameter to detail and select the maximum value.
Sweet! I love Houdini!
That seemed like an excellent solution to the problem. Done.
But ...
After deciding on a model to use (see modeling section below for details) the next step was to figure out how the problem applied if instead of rotating the line corresponding to a line at the bottom part of a box we were rotating around the origin with the box shown below. This is where it becomes similar to the tangent to a circle problem, but again we are going to do this for every point on the polygon.
MECHANICS - line with "thickness"
The above was based on a line and the box is rotating at the bottom point, however most often we want the line to have "thickness". The example below has the box centered as the model I will use.
Now
the problem is not just the line crossed with the z-axis as
above. We need to focus on the green box rotation. The
solution is as given in the point wrangle, with the
explanation below
We can generalize this even
further by adding the ability to go up and down. See the "Spin" example by cliicking
here.
MODELING

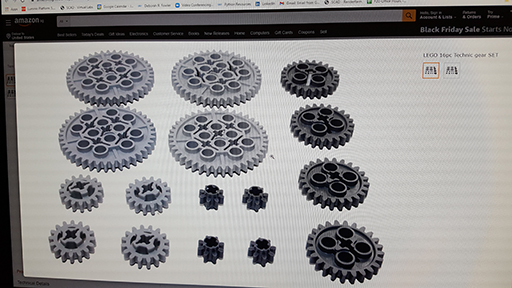

I started to think about what kind of example I could create that was not just a line and also tried objects that were 3D. This is where it gets a bit more interesting (and similar to the tangent to the circle). My inspiration (yes, reference, reference, reference) was from a pieces of lego from my son's toy bin, and some gears I found pictures of online.

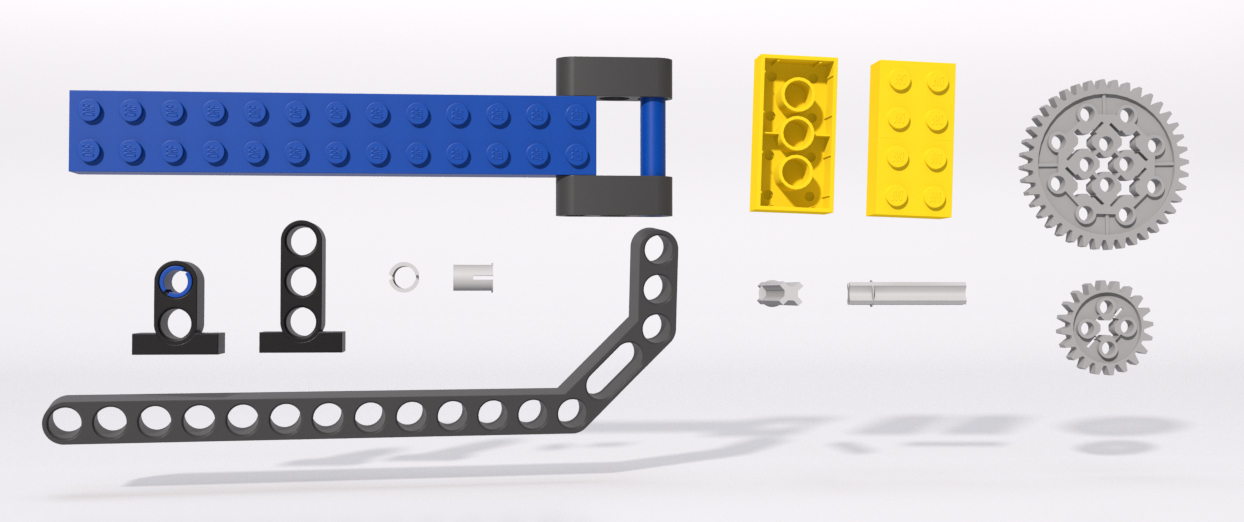

Building the parts in a procedural manner made it easier to modify and adopt to the configuration. The "arm" base was a serious of circle arcs, add points, joins and delete spheres. The other parts were relatively straightforward.
For further generalizations click here
"Dot Product is the product of the magnitudes of the two vectors and the cosine of the angle between them. The name "dot product" is derived from the centered dot that is often used to designate this operation. See wiki entry.
Also on youtube at https://www.youtube.com/watch?v=UqpmteoWF6s
MECHANICS
This project was inspired by two things:

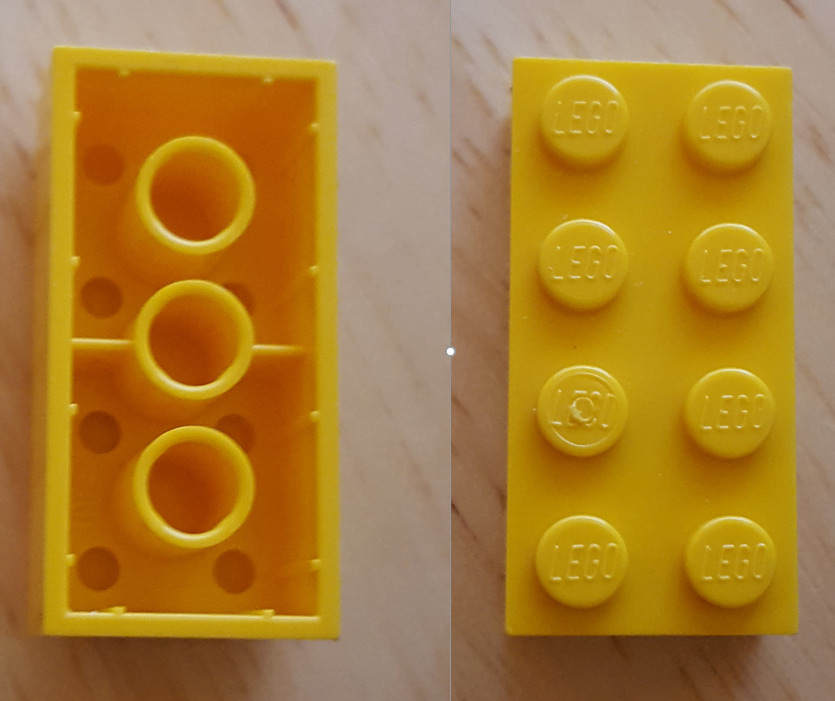

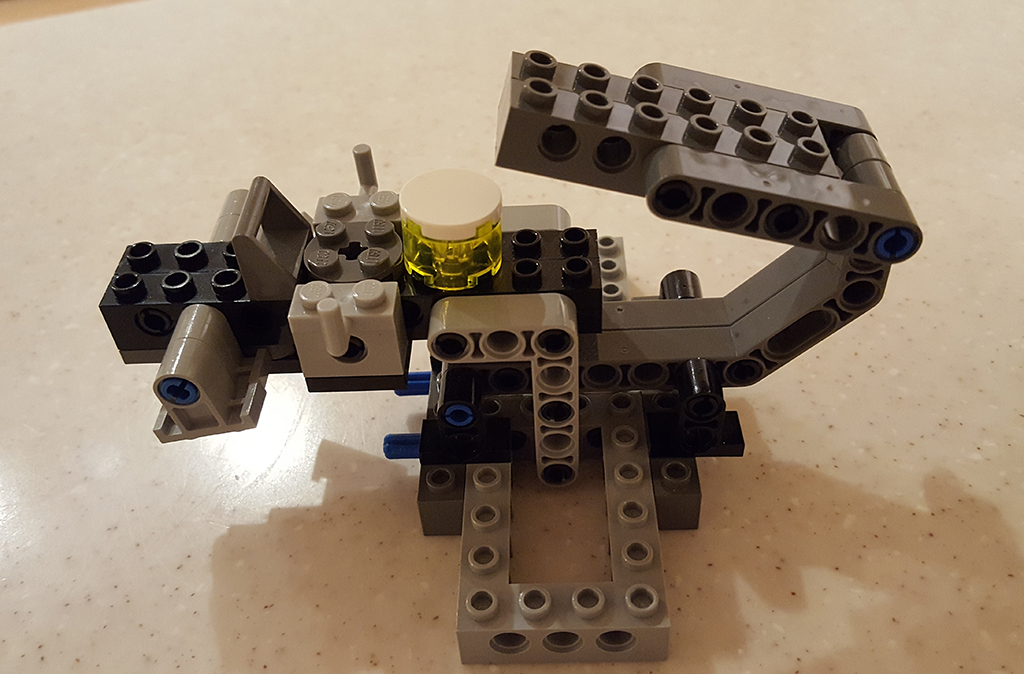

- a piece of a toy that my son had in a toy bin of lego (when I wanted an object with a hinge)
- when teaching students about bbox,
Exampleintersection analysis
Example
for automaton (see tips and tricks), and tangent to a circle
(wrangle node examples) these all
work fine, except in the case of an arbitrary polygon
moving a lever. Most of the examples to date have not
required a solution to this problem but I was just
thinking about the tangent to a circle and what if it was
not a circle ...
... the method for the circle will not work since there is no tangent to an arbitrary polygon that we can guarantee to hit. Bbox and intersection analysis are out because we do not know where it intersects.
It started off with a simple geometric proof of concept and one line of pointwrangle code:
The key to the solution
is to calculate the dot product between the axis (z-axis in
this case) and each point of the polygon. Then take the acos

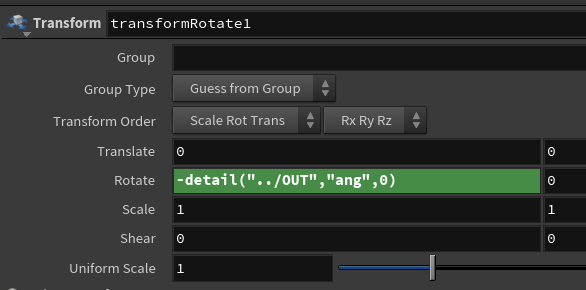

to find out the angle and convert it into degrees for use in
the hscript expression. I love math! The point that needs to
be used is the maximum angle. A really useful method for doing
this in Houdini is to use Attribute Promote and
promote the parameter to detail and select the maximum value.
Sweet! I love Houdini!
- I also used a clip node to reduce computation (less points)
- I wanted this to work on an arbitrary 3D shaped polygon.

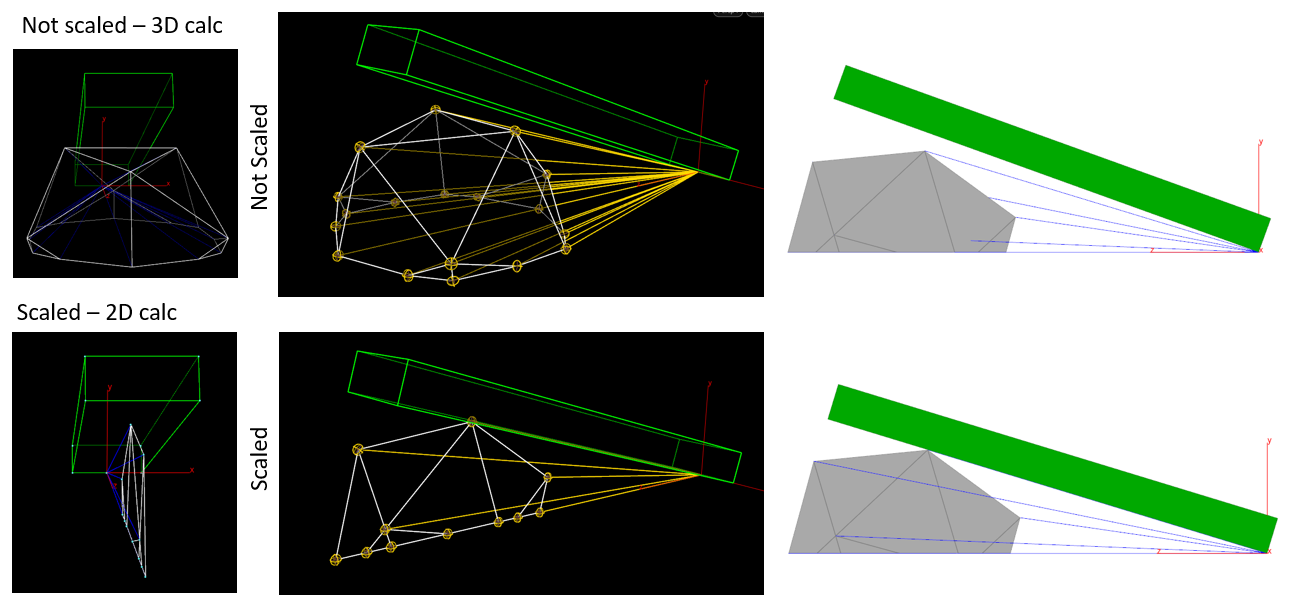

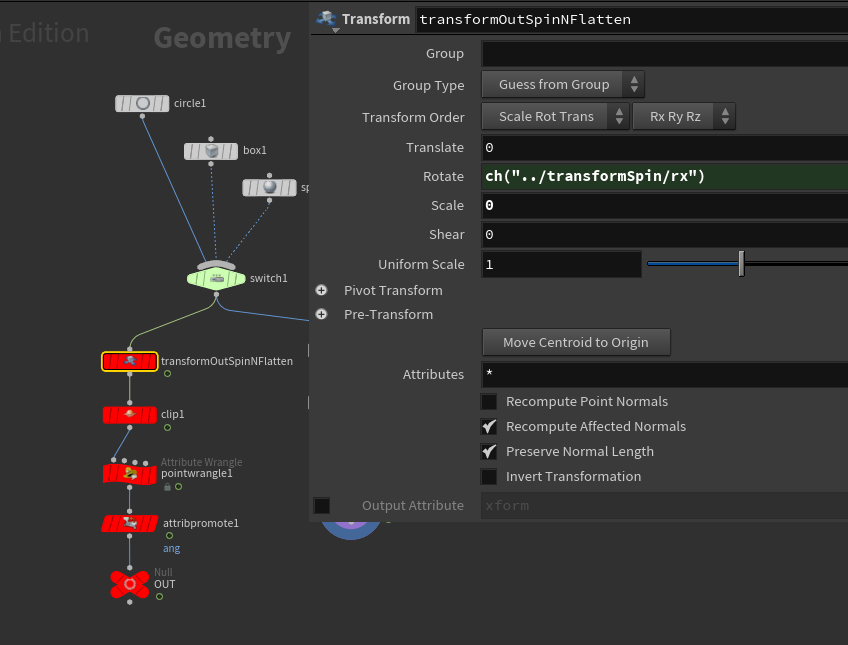

In this case it is imperative to scale to 0 in x so
that you are only dealing with the distance from the point
P to the origin in one dimension, otherwise some points
are giving a larger value but not accurate for pushing up
the lever (longer in three dimensions).
That seemed like an excellent solution to the problem. Done.
But ... After deciding on a model to use (see modeling section below for details) the next step was to figure out how the problem applied if instead of rotating the line corresponding to a line at the bottom part of a box we were rotating around the origin with the box shown below. This is where it becomes similar to the tangent to a circle problem, but again we are going to do this for every point on the polygon.
MECHANICS - line with "thickness"

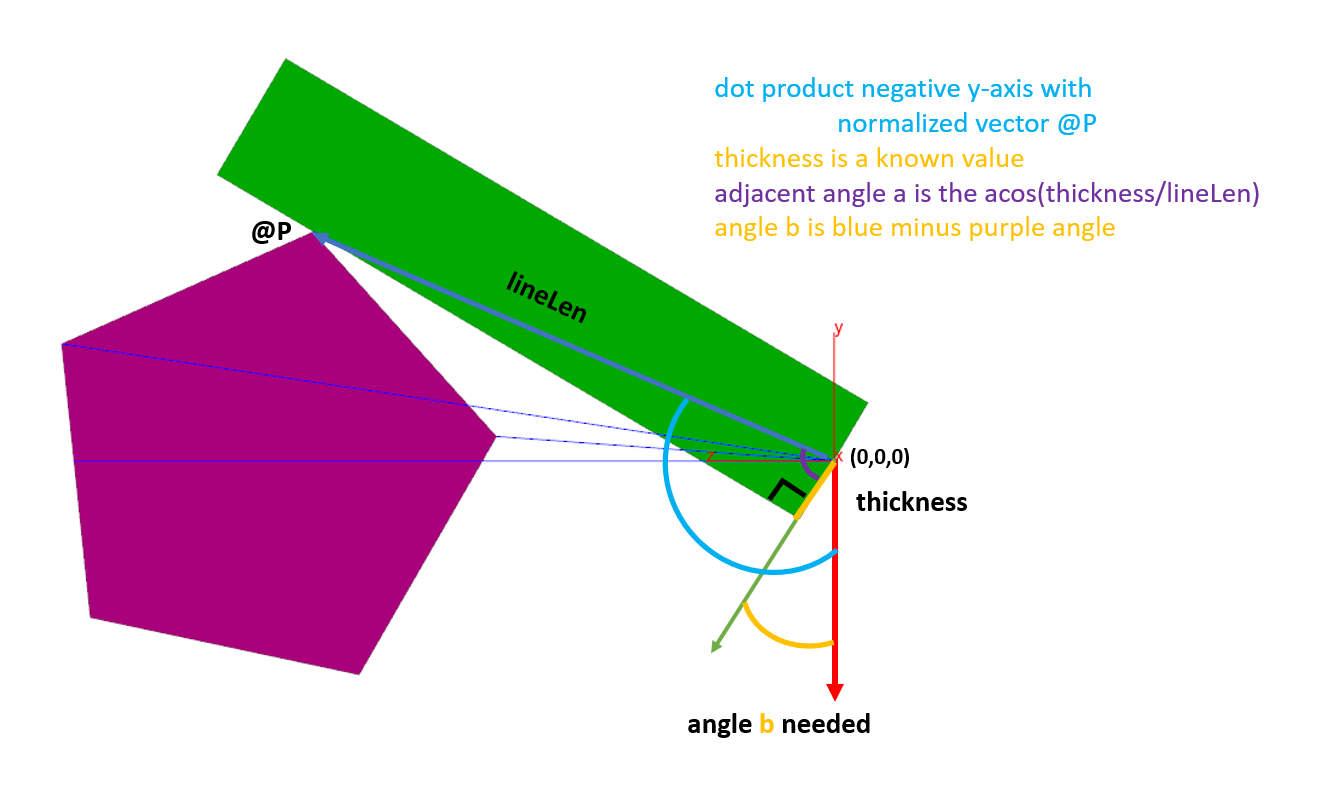

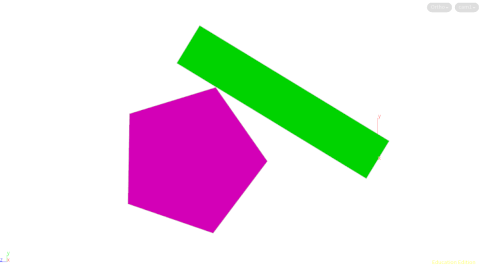

The above was based on a line and the box is rotating at the bottom point, however most often we want the line to have "thickness". The example below has the box centered as the model I will use.

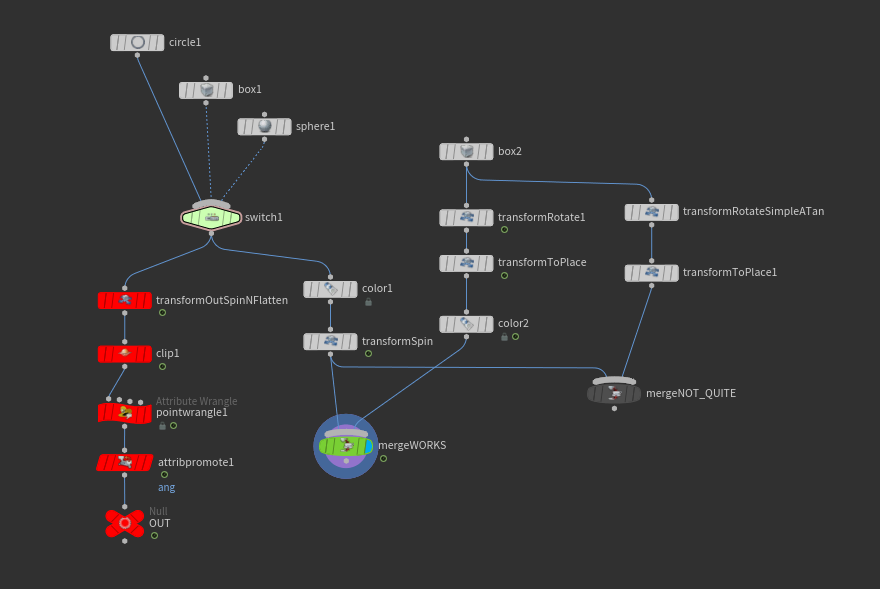

Now
the problem is not just the line crossed with the z-axis as
above. We need to focus on the green box rotation. The
solution is as given in the point wrangle, with the

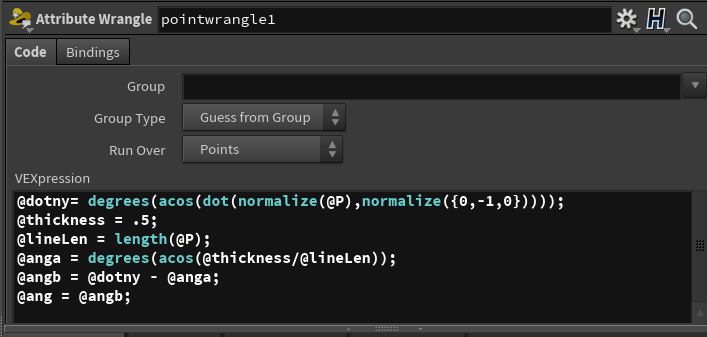

explanation below We can generalize this even
further by adding the ability to go up and down. See the "Spin" example by cliicking
here.MODELING
I started to think about what kind of example I could create that was not just a line and also tried objects that were 3D. This is where it gets a bit more interesting (and similar to the tangent to the circle). My inspiration (yes, reference, reference, reference) was from a pieces of lego from my son's toy bin, and some gears I found pictures of online.
Building the parts in a procedural manner made it easier to modify and adopt to the configuration. The "arm" base was a serious of circle arcs, add points, joins and delete spheres. The other parts were relatively straightforward.
